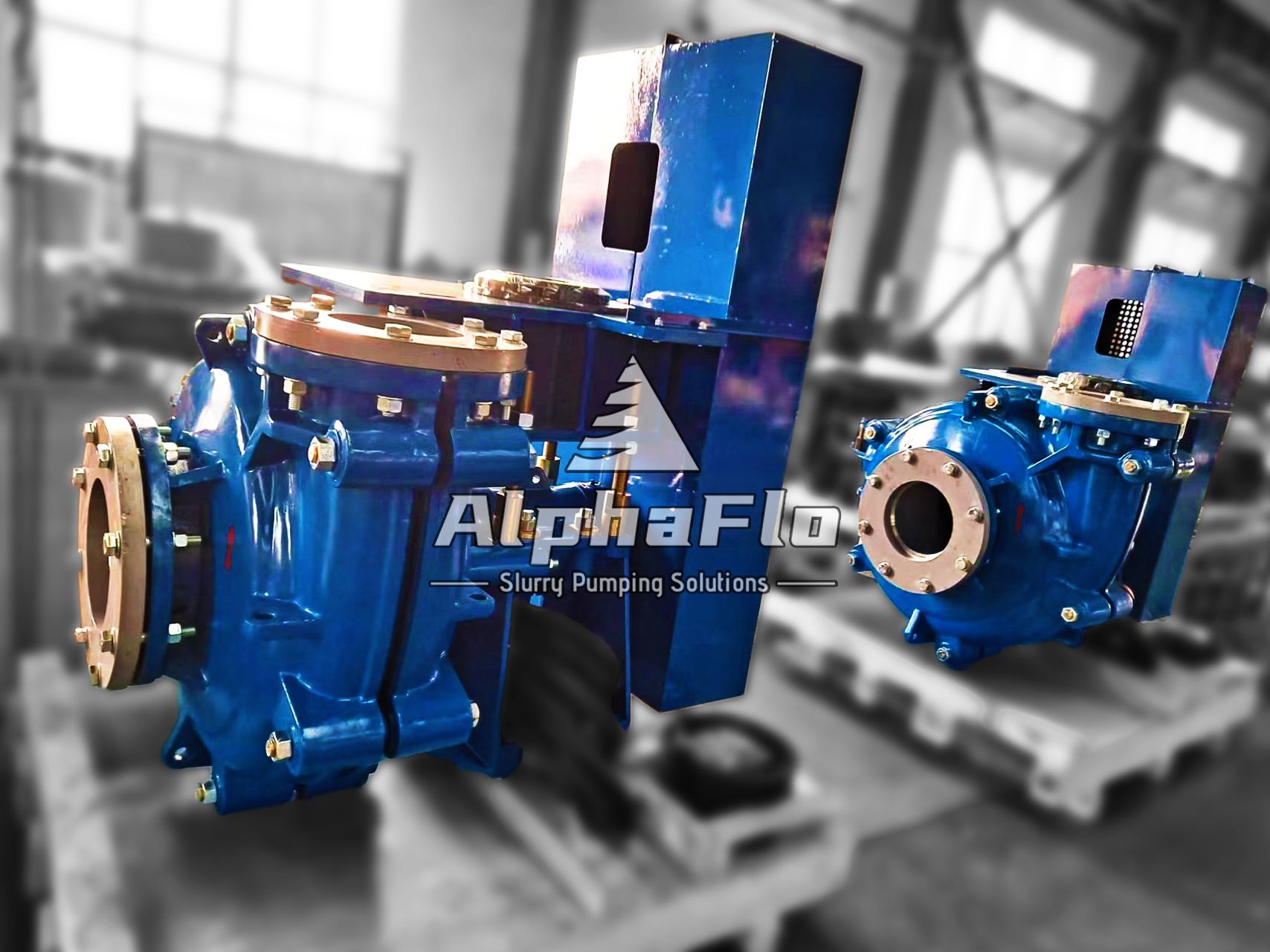

WARMAN AH PUMP,

ALPHAFLO A SERIES PUMP

AlphaFlo A series extra heavy duty horizontal centrifugal slurry pumps for continuous pumping of highly abrasive or dense slurries in processes from cyclone feed to regrind, flotation and tailings.

(Interchangeable with Warman AH Pump).


All OEM pump parts information are for reference only and AlphaFlo is not affilicated with OEM.


E-mail. info@alphaflo.com

SLURRY PUMP MODELS

ITEM NO. PUMP SERIES PUMP SIZE PUMP FRAME TYPE PUMP MODEL
1 AH 1.5X1 B 1.5X1 BAH
2 AH 2X1.5 B 2X1.5 BAH
3 AH 3X2 C/CC 3X2 CAH
4 AH 4X3 C/CC/D/DD 4X3 CAH
5 AH 6X4 D/DD/E/EE 6X4 DAH
6 AH 8X6 E/EE/F/FF/R 8X6 EAH
7 AH 10X8 F/FF/G/GG/ST 10X8 FAH
8 AH 12X10 F/FF/G/GG/ST 12X10 FAH
9 AH 14X12 F/FF/G/GG/ST 14X12 FAH
10 AH 16X14 G/GG/TU 16X14 GAH
11 AH 20X18 G/GG/TU/U 20X18 TUAH

STUFFING BOX

AlphaFlo - After-market pump parts


  • Stuffing Box is the key part for pump gland seal .
  • Stuffing box is made of steel.
  • Part number description.
  • DAM078C26 -  DAM-078-C26
  • DAM = Pump frame Type.
  • 078 = 3-digit pump part basic number
  • C26= Material code.

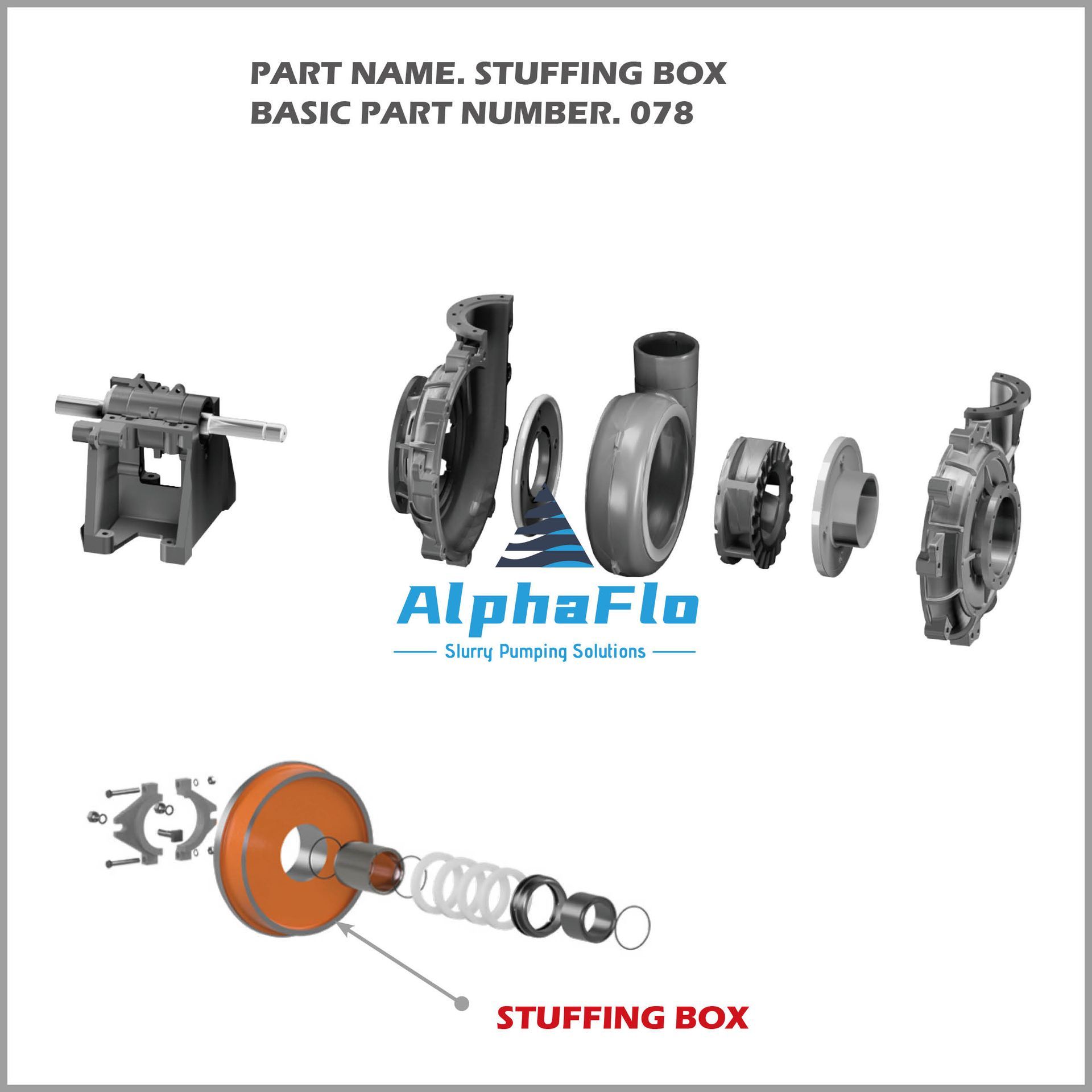

WARMAN PUMP GLAND SEAL STRUCTURE COMPONENT DRAWING,

STUFFING BOX PART NUMBERS

NO. PART NAME OEM PART NO. MATERIAL PUMP SERIES PUMP SIZE FRAME
1 STUFFING BOX B078C26 C26 AH 1.5X1 B
2 STUFFING BOX C078C26 C26 AH 3X2 C
3 STUFFING BOX CAM078C26 C26 AH 4X3 C
4 STUFFING BOX D078C26 C26 AH 4X3 D
5 STUFFING BOX DAM078C26 C26 AH 6X4 D
6 STUFFING BOX E078C26 C26 AH 6X4 E
7 STUFFING BOX EAM078C26 C26 AH 8X6 E
8 STUFFING BOX F078C26 C26 AH 8X6 F
9 STUFFING BOX G078C26 C26 AH 10X8 G
10 STUFFING BOX GAM078C26 C26 AH 16X14 GAM
11 STUFFING BOX H078C26 C26 AH 16X14 H
12 STUFFING BOX GAM18078C26 C26 AH 20X18 GAM
13 STUFFING BOX TU18078MC26 C26 AH 20X18 TU

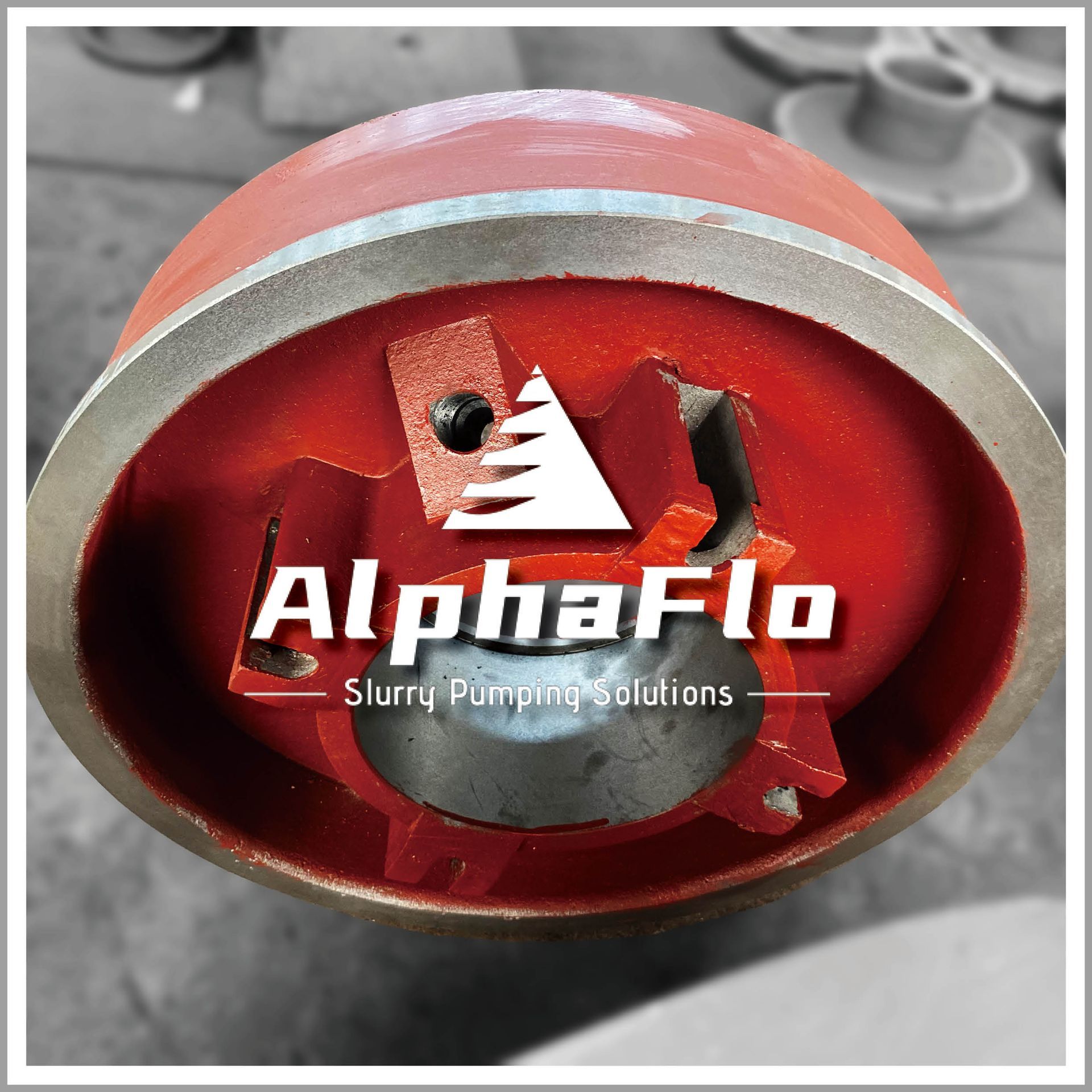

WARMAN AH PUMP STUFFING BOX DAM078C26,

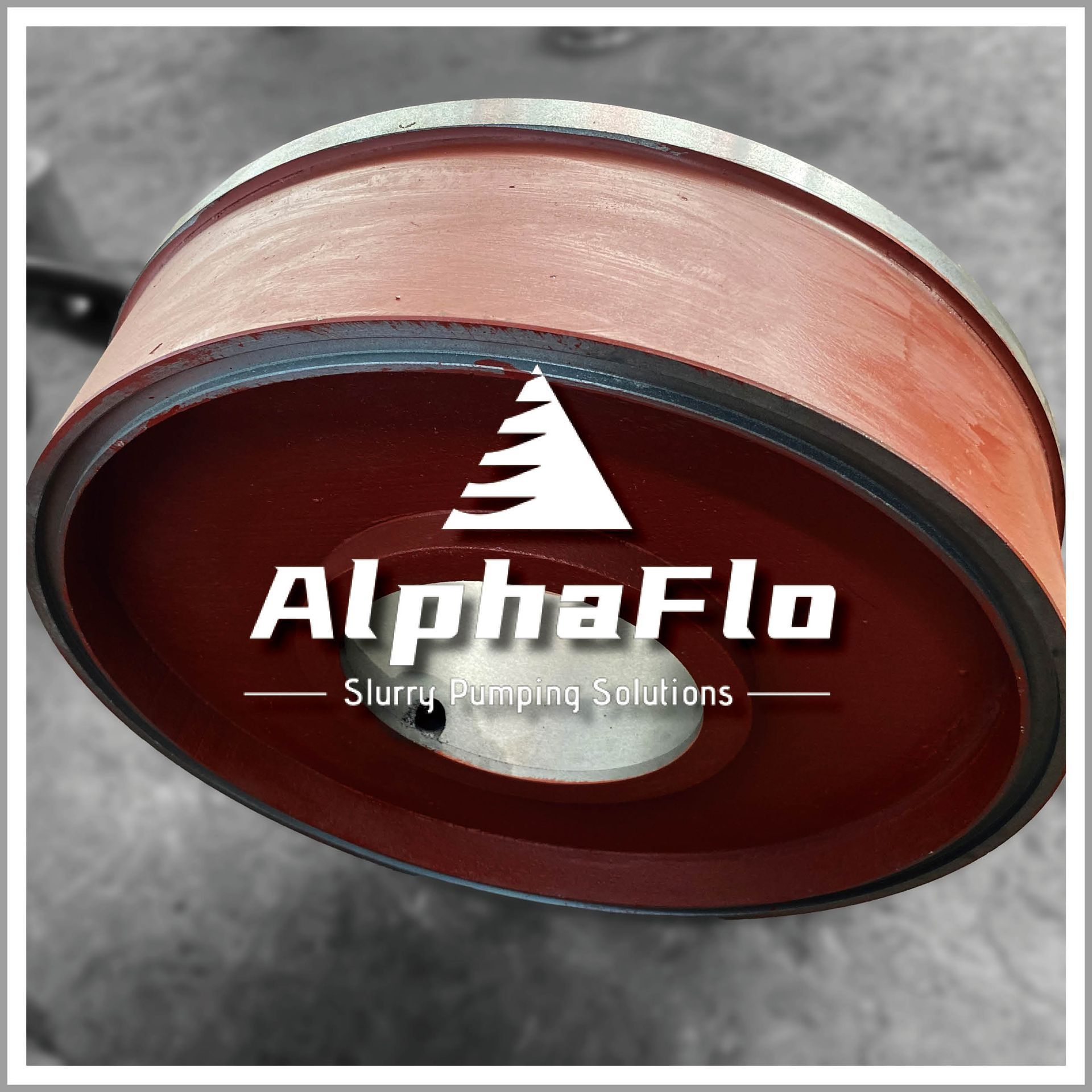

WARMAN PUMP STUFFING BOX B078C26,

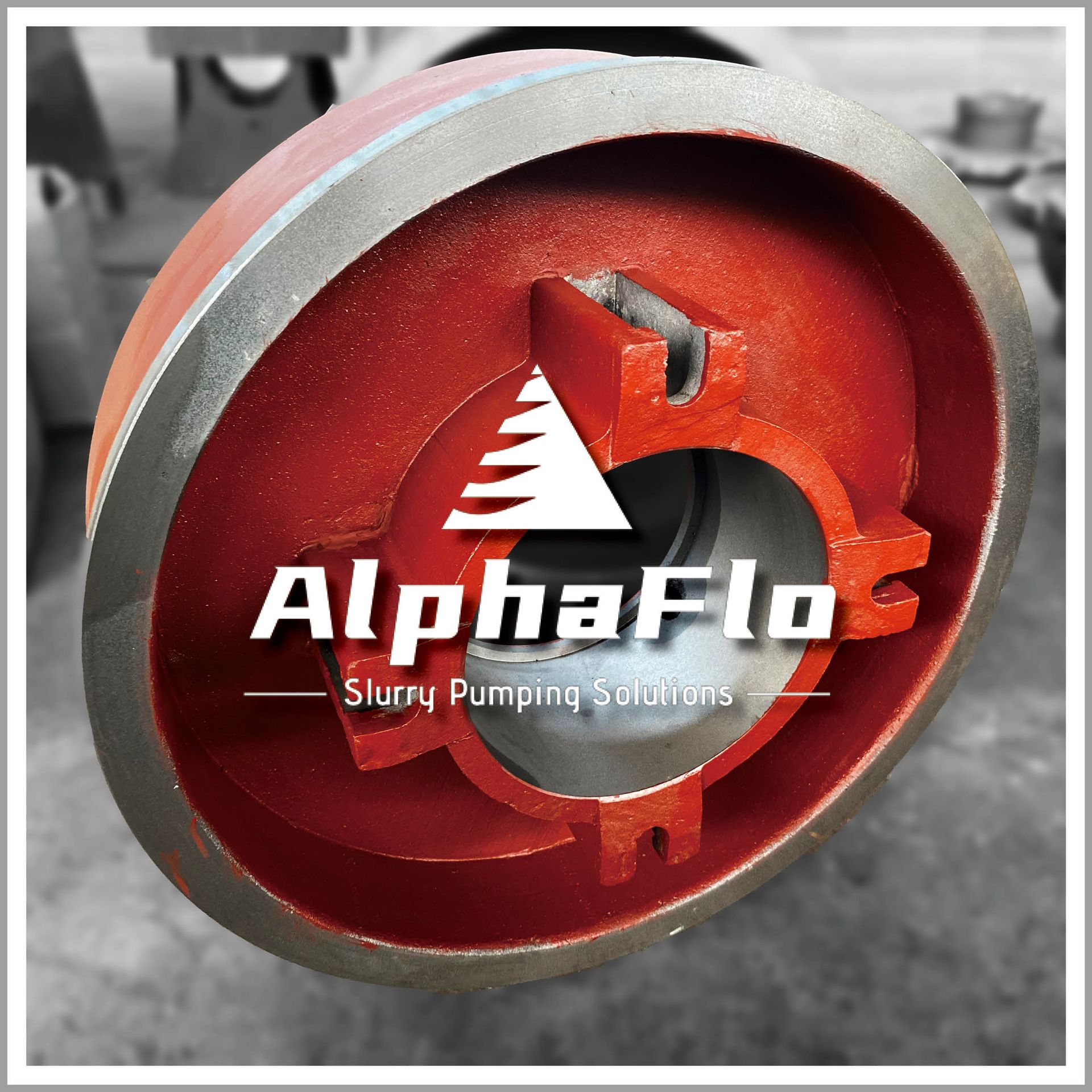

WARMAN PUMP STUFFING BOX C078C26,
